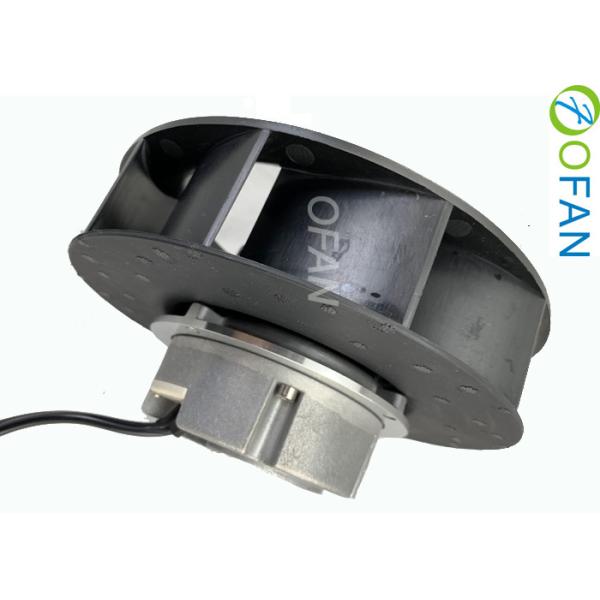

175mm Ec Centrifugal Fans With Air Purification Pa66 Fresh Air System
EC Motor – Principle
With an EC motor the electronic circuitry stands in lieu of the traditional mechanical commutation meaning the right amount is being supplied in the right direction at exactly the right time providing precise motor control
| Type | Nominal voltage (VAC) | Frequency (HZ) | Speed | Power imput (w) | Current draw (A) | Sound pressure (dB) | Perm.amb.temp
|
| LD175C-230D3-00 | 220 | 50/60 | 3650 | 82 | 0.65 | 68 | -25~+60 |
Energy savings : Minimum power consumption & better efficiency than AC equivalent.
Control : 100% speed controllable, not frequency dependant. Can be set-up for constant airflow or constant pressure applications, 0-10VDC or PWM control signal.
Compact configuration, convenient installation and credible running
Pressure high, airflow stable
Little noise, energy saving and highly active
Several speed rang, adapt to both frequency conversion and voltage transformation, speed changing active
if the fans doesn't work well, what shall I do ?
If happens within one year, we will take in charge of the maintenance, or send you a new machine freely.
If after one year, we will supply you the right parts to replace at low price.
What about delivery date?
Product can be sent to you within a week if there is stock after receiving deposit or 100% payment from customer. If there is no stock, the delivery date will be 15 to 30 days
